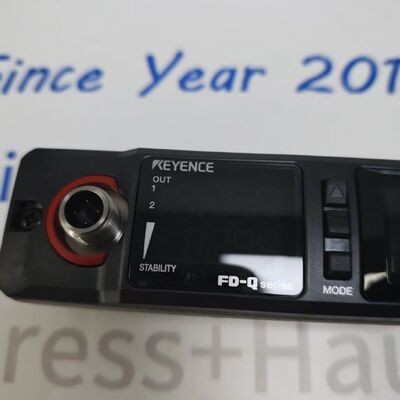

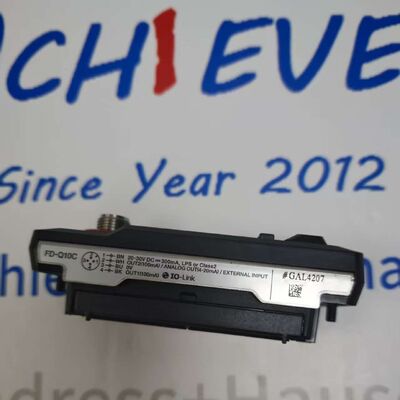

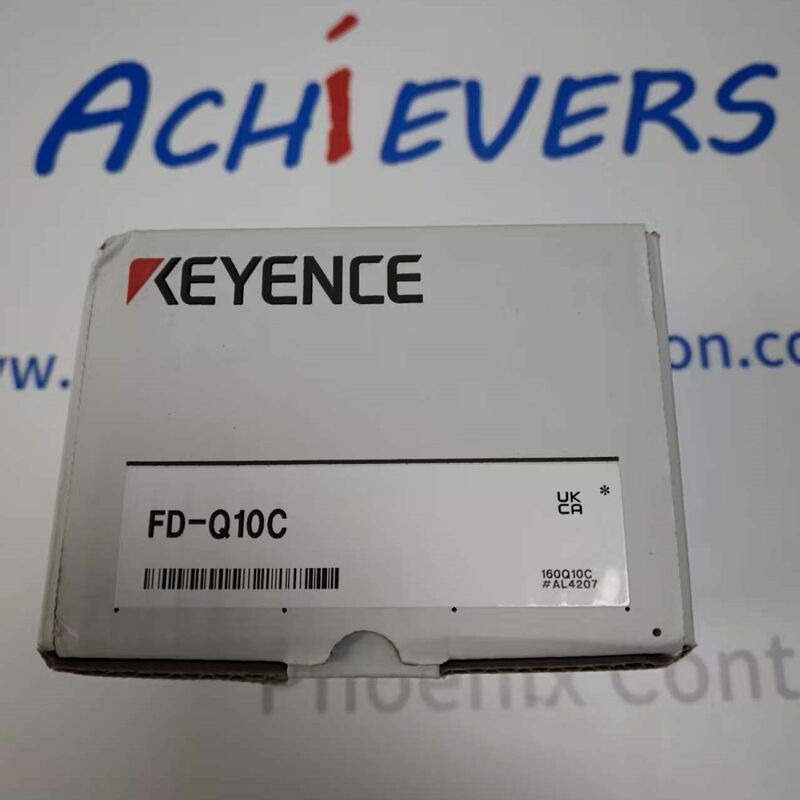

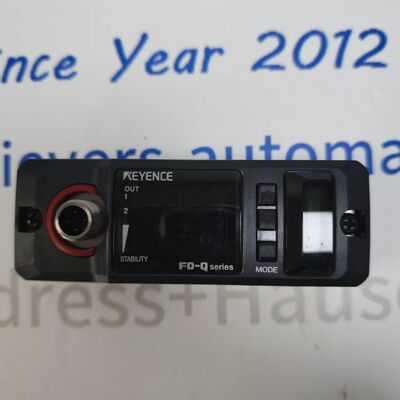

KEYENCE FD-Q10C Clamp-On Ultrasonic Liquid Flow Sensor
Manufacturer :KEYENCE
Product No. : FD-Q10C
-
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The KEYENCE FD-Q10C is an external clamp-on ultrasonic flow sensor designed for non-intrusive liquid flow measurement. Unlike inline flow meters, this unit clamps directly onto the exterior of existing piping without pipe cutting, fluid contact, or process shutdown during installation. It supports two standard pipe specifications: 1/4" (8A, Ø13–16 mm) and 3/8" (10A, Ø16–18 mm), compatible with both metallic and resin tubing materials.
Detail:
| Parameter Item |
Technical Specification |
| Full Model Number |
FD-Q10C |
| Manufacturer |
KEYENCE |
| Measurement Principle |
Non-invasive Clamp-On Ultrasonic Flow Detection |
| Supported Pipe Sizes |
1/4" (8A): Ø13–16 mm; 3/8" (10A): Ø16–18 mm |
| Compatible Pipe Materials |
Metal tubing, resin plastic tubing |
| Detectable Fluid Media |
DI water, tap water, hydraulic oil, mild industrial chemicals (low-viscosity homogeneous liquids) |
| Rated Max Flow Rate |
8A pipe: 20 L/min; 10A pipe: 30 L/min |
| Default Zero Cut Flow Threshold |
1.0 L/min |
| Power Supply |
20–30 VDC, max 10% peak-to-peak ripple, Class 2 LPS |
| Standby Current Draw |
≤ 100 mA (excluding external load current) |
| Digital Output Channels |
2 open-collector channels, NPN/PNP switchable; Max 100 mA per channel, 30 VDC max load |
| Analog Output Option |
4–20 mA / 0–20 mA selectable; Max load resistance ≤ 500 Ω |
| External Trigger Input |
Flow reset / zero calibration / origin adjustment input (≥20 ms trigger pulse) |
| Display Configuration |
Dual-row 4-digit 7-segment LED, flow + stability status indicator |
| Display Refresh Frequency |
Approx. 3 Hz |
| Adjustable Response Time |
0.5 / 1 / 2.5 / 5 / 10 / 30 / 60 seconds |
| Net Weight (with mounting bracket) |
340 g |
| Specification Item |
Technical Value |
| Display Resolution |
0.01 / 0.1 / 1 L/min (factory default: 0.1 L/min) |
| Measurement Repeatability |
±2.0% FS (0.5s response); ±0.15% FS (60s response) |
| Allowed Fluid Temperature |
0 °C ~ +85 °C (no ice formation on pipe outer wall) |
| Operating Ambient Temperature |
-10 °C ~ +60 °C |
| Operating Humidity Range |
35% ~ 85% RH, non-condensing |
| Ingress Protection Rating |
IP65 / IP67 per IEC 60529 |
| Vibration Resistance |
10–55 Hz, 1.5 mm double amplitude, X/Y/Z 2-hour test each axis |
| Built-in Circuit Protections |
Reverse power protection, surge suppression, output short-circuit protection |
| Global Safety Certifications |
UL, CSA, RoHS compliant |
| Hysteresis Setting |
Fully adjustable via on-board parameter menu |
| Installation Feature |
No pipe disassembly, no fluid contact, zero process downtime for mounting |
| Stable Operation Condition |
Free of large air bubbles and heavy suspended solid particles in liquid |
